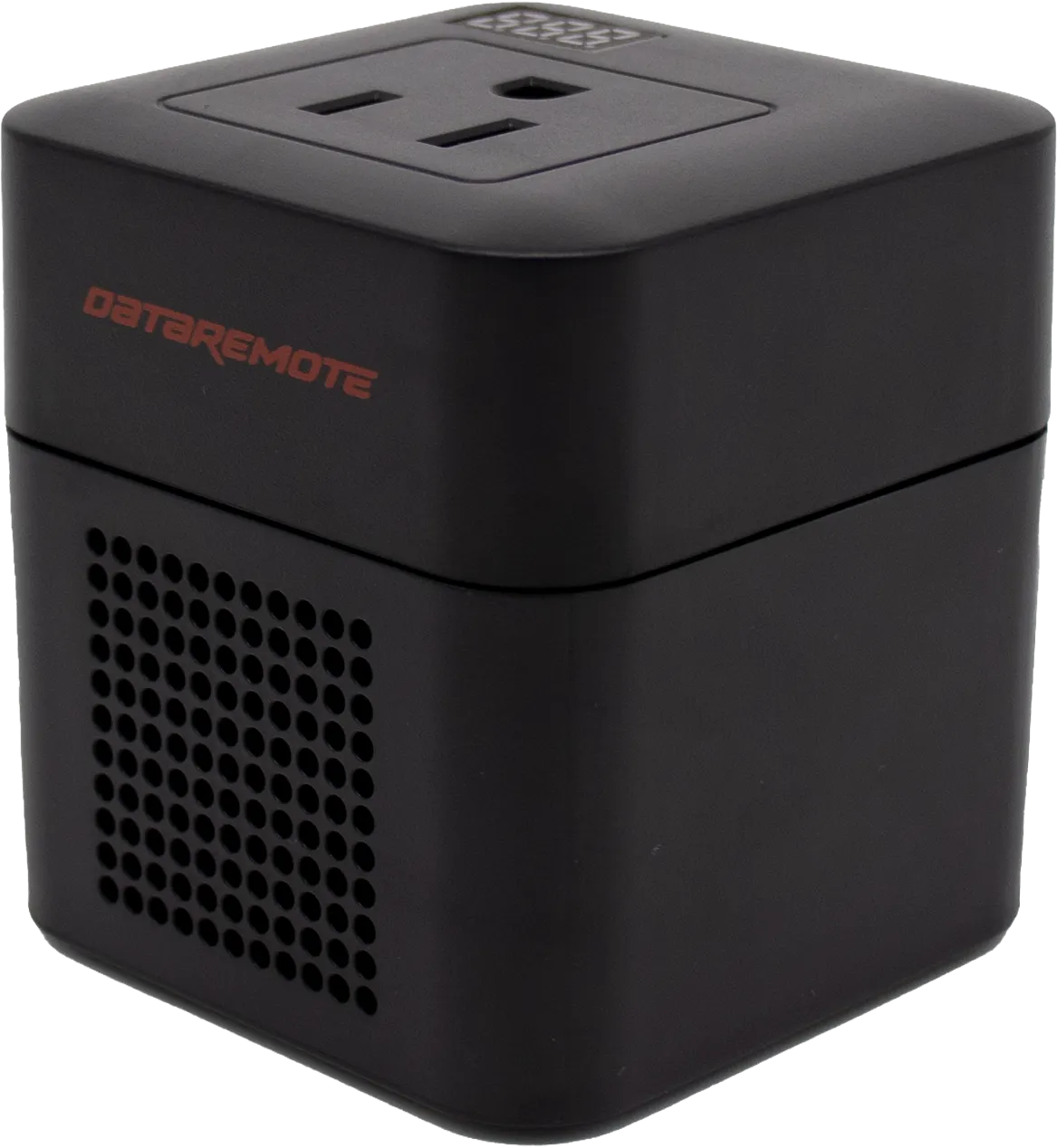

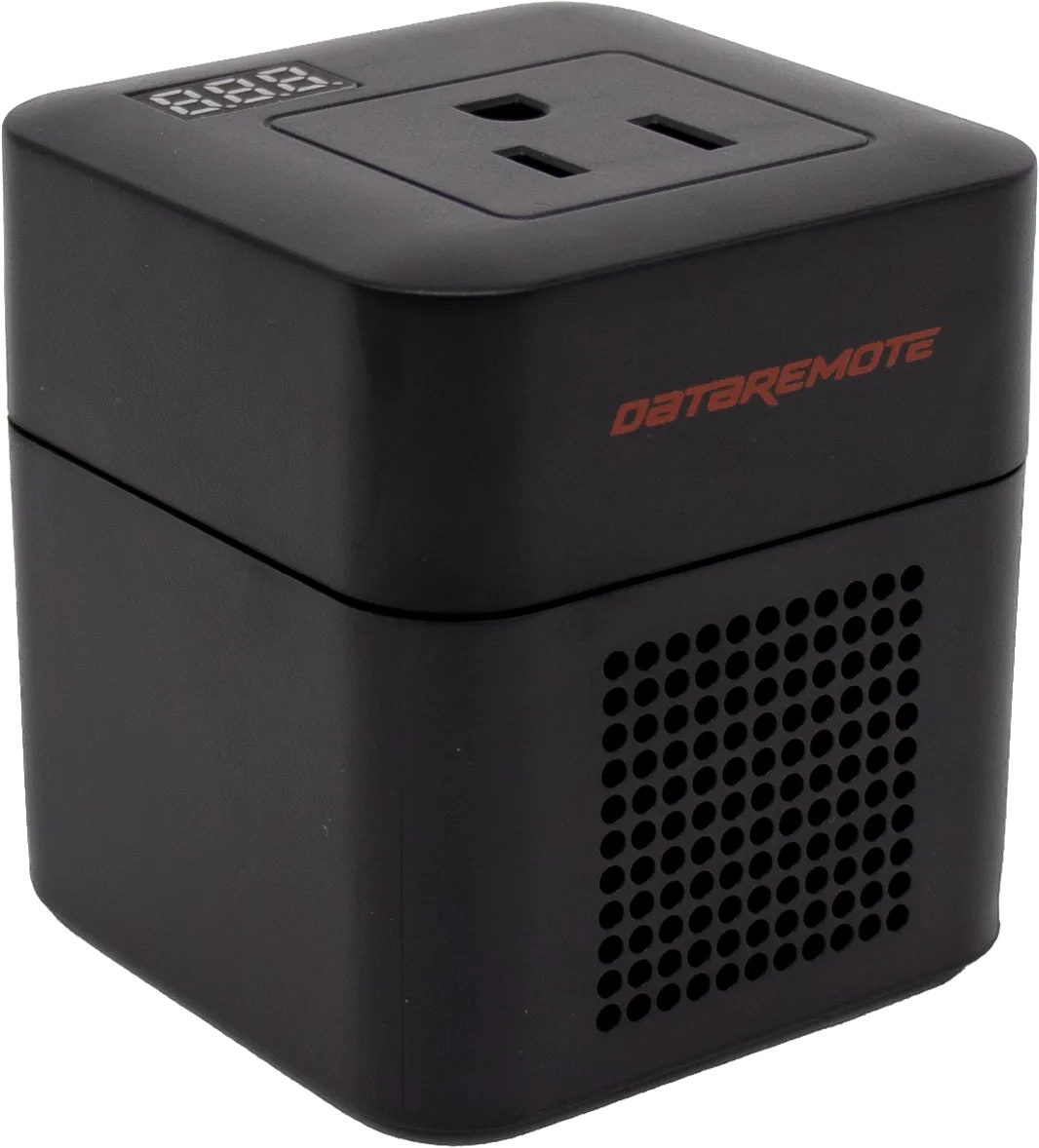

DataRemote ACC-PI01 Power Inverter
Convert DC UPS output into usable AC power
The DataRemote ACC-PI01 is a versatile electrical device designed to convert direct current (DC) power from a DataRemote-enabled device into alternating current (AC) power — keeping small approved AC loads running even when grid power is down.
Key Benefits
Power applicable devices
Bridge the gap during outages — the ACC-PI01 lets you selectively power, cycle, and protect the AC-powered devices connected to a DataRemote appliance's UPS output, without ever touching the ATA or router.
- UPS Output pigtail connected to Inverter
- Enable or Disable POWER to connected devices
- Perform Inverter power cycle to reboot connected devices
- Automatic Inverter shut-off for load capacity transcendence
- No interruption or impact to device ATA or Router functionality
Technical specifications
DC Input
- Rated input voltage: 12.5V
- DC voltage input range: 11–15VDC
- No-load input current: ≤250mA
AC Output — Electrical
- Alternating voltage: 115V ± 10V
- Rated power: 150W
- AC output frequency: 60Hz ± 2Hz
- Output voltage waveform: Modified sine wave
- Conversion efficiency: 88%
- Note: The UPS output of DataRemote devices is limited to 50W, which in turn limits the inverter AC power output to less than ~50W
AC Output — Connection

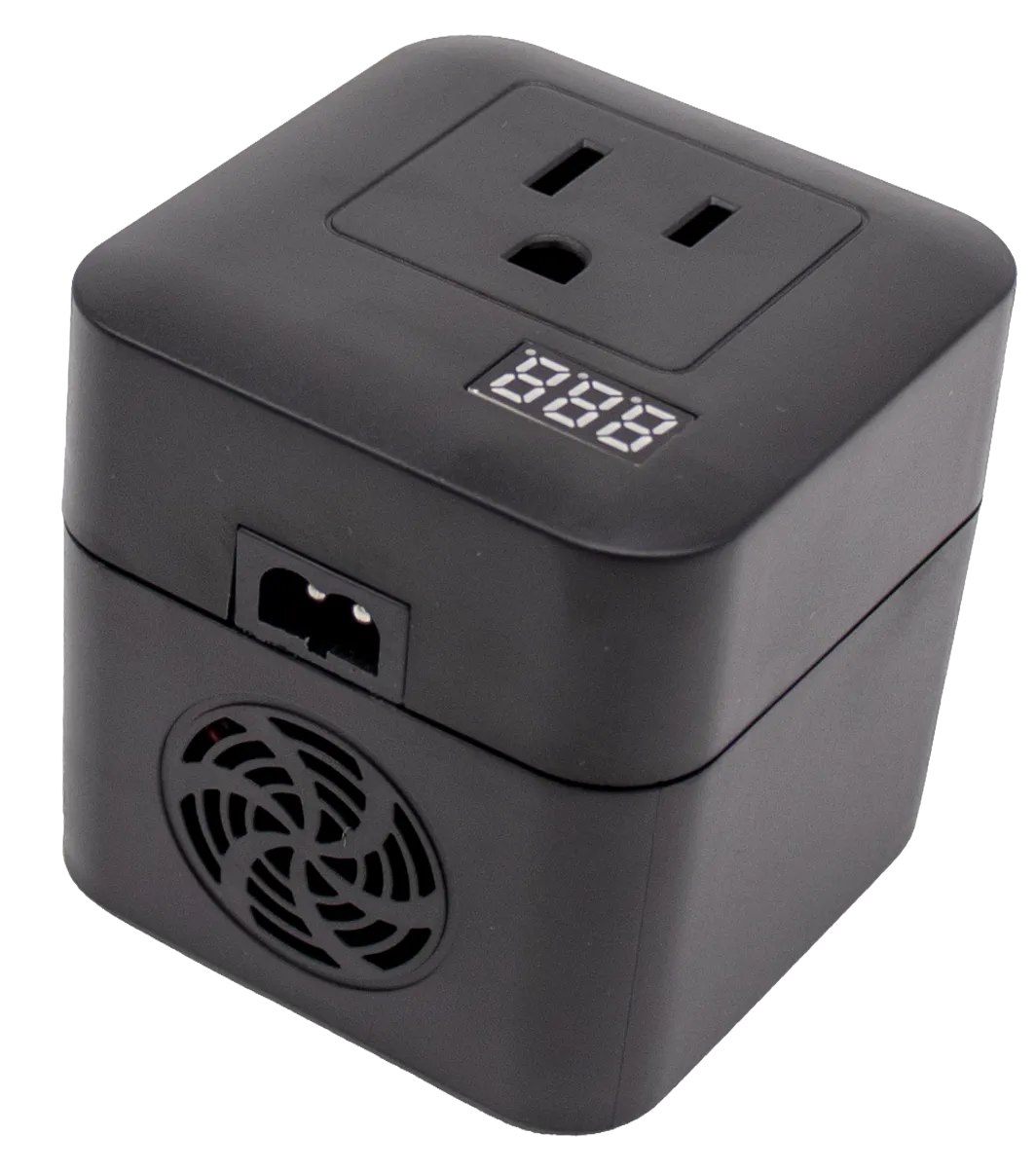

- Connection method: Molex 3.0-4P cable, 0.6m length
- Housing material: ABS + PC
- AC plug: 1 × US plug
- LED display: 1
- Product size: 60 × 60 × 63mm
- Gift-box size: 70 × 80 × 105mm
Protection
- Low voltage protection: 9.5V ± 0.5V
- Overvoltage protection: 16V ± 0.5V
- Overload protection: ≥160W
- Heat dissipation method: smart fan start at 45°C
- Over-temperature protection: 105°C ± 5°C
Temperature
- Operating ambient temperature: -10°C to 60°C
- Storage environment temperature: 0°C to 40°C
- Working humidity: 40%–60% RH
- Storage humidity: 40%–60% RH
Full specs in the ACC-PI01 datasheet (PDF).
